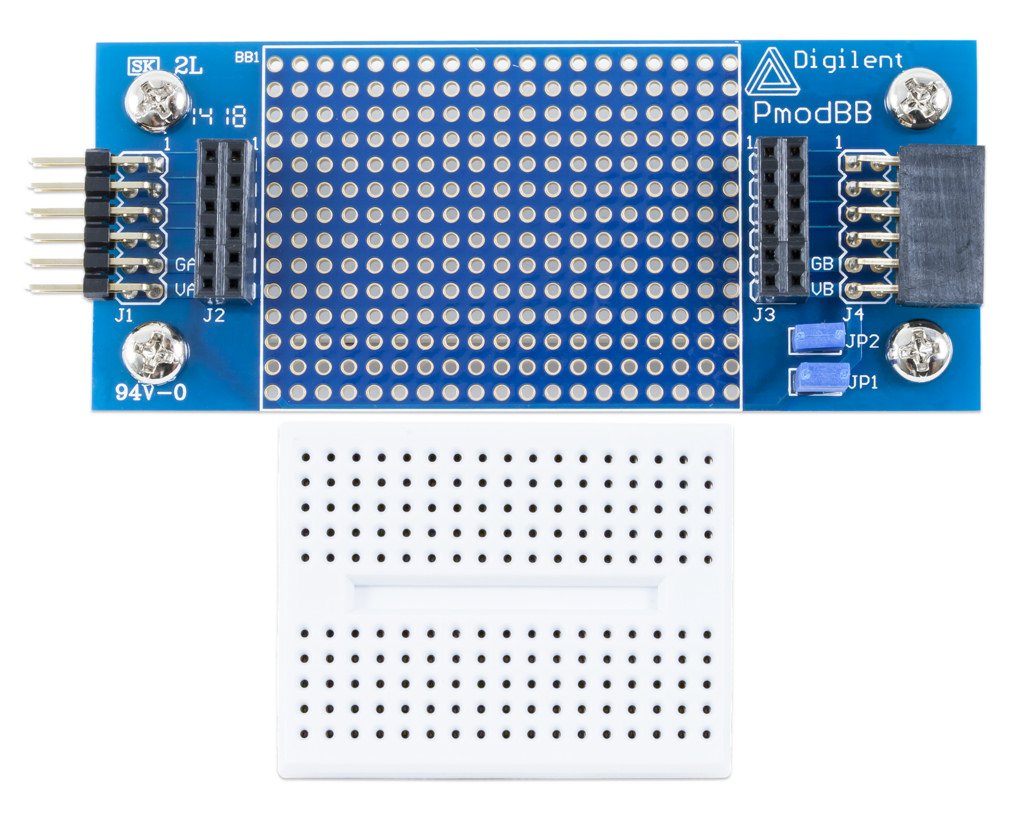

Digilent Pmod BB: Wire Wrap/Breadboard

The Pmod BB provides a ready-made solution for prototyping breadboard circuits. With the 2x6 pin header you can directly apply your digital or analog signals without going through the hassle of extra jumper wires. 266 tie-point wire wrap area 170 tie-point solderless breadboard Jumper blocks to tie the power pins together Additional Pmod host port Small PCB size for flexible designs 3.5“ × 1.5” (8.9 cm × 3.8 cm) 12-pin connector, all signals pass through Pmod BB Custom antistatic Pmod packaging One 170-tie point breadboard

• 266 tie-point wire wrap area
• 170 tie-point solderless breadboard
• Jumper blocks to tie the power pins together
• Additional Pmod host port
• Small PCB size for flexible designs 3.5“ × 1.5” (8.9 cm × 3.8 cm)
• 12-pin connector, all signals pass through
• Pmod BB
• Custom antistatic Pmod packaging
• One 170-tie point breadboard
